Thermoforming Material Guide for Molded Products

Thermoforming is a widely used process in manufacturing that involves heating plastic sheets until pliable, then forming them over a mold to create a final product. From food containers to automotive panels, the success of thermoformed parts depends heavily on one factor: material selection. Choosing the wrong material for your application—or overlooking its compatibility with the mold—can lead to part failure, production inefficiencies, and increased costs.

This article is informed by over 30 years of hands-on experience designing and producing custom thermoforming molds for diverse industries. It provides an in-depth look at thermoforming materials and how to match them correctly with your thermoforming mold for optimal results.

Why Material Selection Matters in Thermoforming

Selecting the appropriate plastic for your thermoformed product isn’t just a question of cost or appearance. It affects the entire manufacturing process from mold design and heating profiles to part durability and functionality.

Our Experience:
Over the past decade, our engineering team has supported clients in automotive, medical, and consumer packaging projects. In one example, Hong Zu resolved a complex forming issue affecting the sealing surface of PP food containers by optimizing the mold design. This solution not only eliminated sealing defects but also increased production output.

What happens when you choose the wrong material?

• A rigid material may crack in deep draw applications.
• A chemically incompatible material may degrade in its working environment.
• An incorrect shrink rate can cause your mold to misalign, resulting in warped parts.

Furthermore, the interaction between the mold and the material plays a crucial role. The material’s forming temperature, shrinkage, and flow characteristics determine how the mold should be designed and what it can realistically produce. If your project involves vacuum thermoforming, it is especially important to evaluate material compatibility with airflow dynamics and cooling rates.

Top Thermoforming Materials and Their Properties

Each thermoforming material comes with its own strengths, weaknesses, and ideal use cases. Below are some of the most popular options in industrial and commercial thermoforming. All data is based on validated manufacturing records and material datasheets our team has compiled from decades of production experience.

In packaging applications, the right choice of materials and tooling is essential not only for appearance but also for functional requirements such as tamper resistance and leak prevention. For example, Precision Thermoforming Molds for Tamper-Evident and Leak-Proof Packaging can help manufacturers meet strict food safety regulations and extend shelf life.

ABS (Acrylonitrile Butadiene Styrene)

• Key Benefits: High rigidity, excellent impact resistance, good surface finish
• Applications: Automotive interior panels, luggage, electronics housings
• Mold Compatibility: Works well with aluminum molds; requires moderate forming temperatures (~105–120°C)

PETG (Polyethylene Terephthalate Glycol)

• Key Benefits: High clarity, good deep-draw performance, FDA-compliant
• Applications: Point-of-sale displays, medical packaging, food trays
• Mold Compatibility: Sensitive to moisture; molds must support high transparency needs

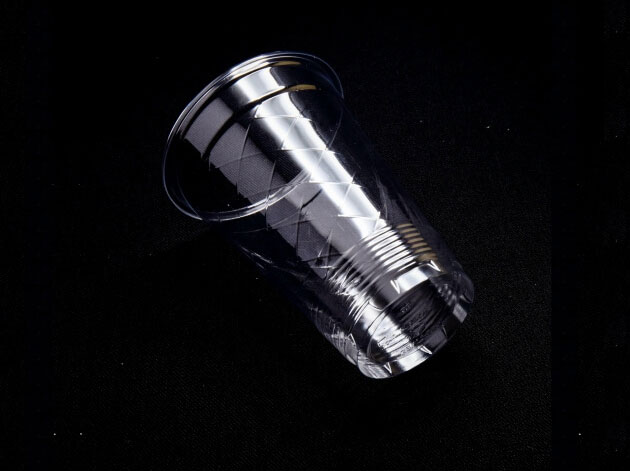

Themoforming cup - PET

PP (Polypropylene)

• Key Benefits: Superior chemical resistance, lightweight, recyclable
• Applications: Food packaging, industrial trays, labware
• Mold Compatibility: Requires high forming temperatures and has a high shrink rate (~1.5–2.5%)

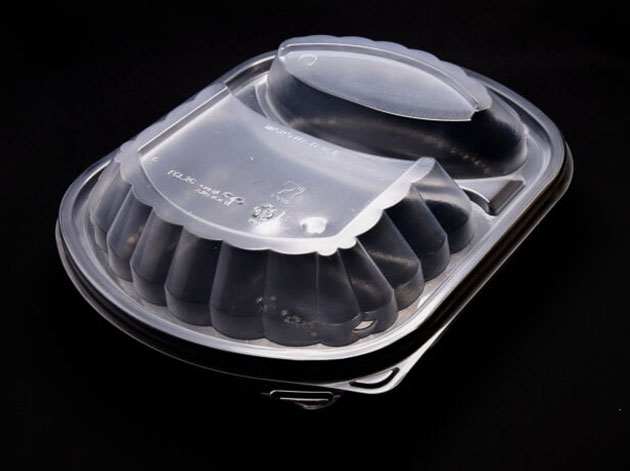

Thermoforming To go box - PP

HIPS (High Impact Polystyrene)

• Key Benefits: Cost-effective, printable surface, easy to thermoform
• Applications: Disposable containers, signage, toys
• Mold Compatibility: Excellent for simple or short-term molds; low forming temperatures

Acrylic

• Key Benefits: High clarity, good rigidity
• Applications: Displays, protective covers
• Mold Compatibility: Requires precise temperature control to avoid cracking

Polycarbonate

• Key Benefits: Excellent impact resistance, high clarity
• Applications: Protective panels, machine guards
• Mold Compatibility: Requires precise tooling and higher forming temperatures

HDPE (High Density Polyethylene)

• Key Benefits: Good chemical resistance, impact strength
• Applications: Industrial trays, containers
• Mold Compatibility: Needs reinforced aluminum or steel tooling for dimensional stability

How Material Choice Affects Mold Design

Every material behaves differently under heat and vacuum, and these behaviors directly affect mold design. Two of the most critical considerations are:

1. Heat Deflection and Shrinkage

   • Materials with high thermal expansion (like PP) shrink more as they cool, requiring mold allowances.
   • Heat deflection temperatures determine how much cooling is needed before part removal—impacting cycle time.




2. Sheet Thickness and Vacuum Flow

   • Thicker sheets may not distribute heat evenly, leading to inconsistent forming unless the mold ensures even vacuum distribution.
   • Sharp corners and complex cavities can block airflow, creating thin spots or malformed parts.

Expert Insight:
Our engineers typically perform simulation analysis and prototype trials to confirm that the mold design matches the material’s flow and shrinkage behavior. This proactive approach helps avoid costly adjustments during mass production.

Read more : 5 Minutes to Understand Vacuum Thermoforming : Mold Design & Examples

Common Material–Mold Pairing Mistakes (and How to Avoid Them)

Even experienced manufacturers occasionally make errors that compromise the quality of thermoformed parts. Here are a few frequent pitfalls:

• Using PETG with poor moisture control: Moisture absorption causes bubbles and haze during forming.
• Underrating PP shrinkage: Designers who ignore high shrink rates may end up with warped or undersized parts.
• Forming thick HIPS without adequate vacuum support: Can cause thinning or webbing in deep draw areas.

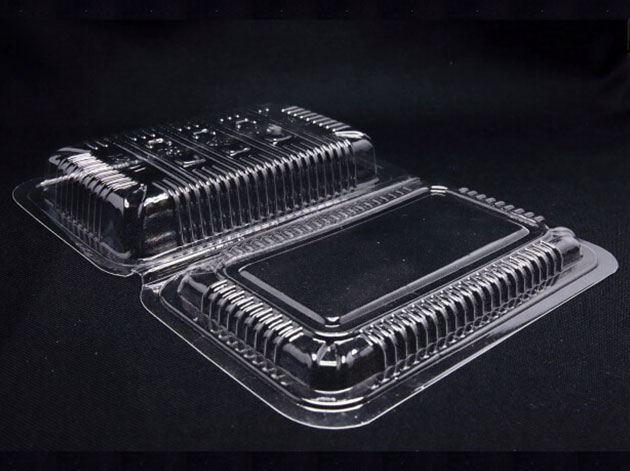

Clamshell containers and other retail packaging formats require special considerations. If your project involves Clamshell Packaging Design, be sure to account for precise hinge alignment, consistent material thickness, and robust sealing properties.

Solution:
Work closely with mold makers who have an established track record and deep expertise in custom thermoforming molds. For example, at Hong Zu, our design team applies strict moisture control protocols and uses calibrated forming equipment to maintain consistent quality across batches.

When to Consider a Custom Thermoforming Mold

Not every project can succeed with a standard mold and off-the-shelf sheet. Sometimes, custom solutions are not just preferred—they’re essential.

1. High-Volume vs. Low-Volume Production

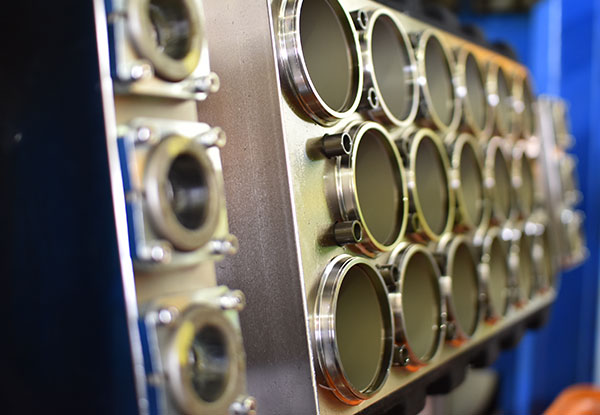

   • For mass production, aluminum molds with water-cooling channels can speed up cycles and improve repeatability.
   • For short runs or prototyping, epoxy or 3D-printed molds paired with low-cost materials like HIPS are more economical.




2. Complex or Multi-Layered Designs

   • Products with irregular shapes, double walls, or ventilation channels require precision-engineered molds.
   • Multi-part tooling or plug assists may be needed to achieve proper detail and wall thickness.




3. Advanced Material Applications

   • Some industries, like aerospace or medical, require material certifications and precise thermal control, making off-the-shelf molds inadequate.

In addition, specialized tooling such as Cutting Dies and Tools for Thermoforming Machine or Molds for Cup Thermoforming Machine can be integrated into the process to improve trimming accuracy and cycle time.

Authority and Trust:
As a recognized leader in thermoforming mold manufacturing, Hong Zu holds multiple international patents and certifications, supporting clients worldwide to deliver reliable, high-quality thermoformed products.

Match the Right Material to the Right Mold

Thermoforming success begins with selecting the right material—and making sure it’s perfectly matched to your mold design. Whether you are producing large trays, plastic cup molding, or high-clarity packaging, this alignment is critical.

For applications in food service and consumer products, thermoforming food packaging continues to be a preferred choice due to its efficiency, scalability, and visual appeal.

Whether you're working on a product that requires clarity, durability, flexibility, or chemical resistance, there’s a material that fits the need—but only if your mold supports its characteristics.

Need expert guidance backed by decades of hands-on experience?
At Hong Zu, we combine proven expertise, certified manufacturing practices, and global project experience to help you achieve outstanding thermoforming results with confidence.

Contact the Hong Zu Team today to explore your project’s full potential through the right thermoforming material and mold design.
