Thermoforming Examples That Prove Mold Design Makes the Difference

Thermoforming is everywhere—from the salad box in your fridge to the clamshell container holding your favorite sandwich. While this forming technique is used across multiple industries, nowhere is its impact more visible than in the food packaging sector. For food brands and manufacturers, thermoforming enables fast, scalable, and hygienic packaging solutions.But what truly separates successful thermoformed packaging from subpar results? One critical factor: mold design.

This article highlights real thermoforming examples, focusing on food packaging applications. You’ll see how mold design influences everything from structural integrity and sealing performance to visual clarity and production efficiency. With insights from HongZu, a leading mold manufacturer specializing exclusively in food packaging, these examples show why precision engineering matters at every stage.

5 Thermoforming Examples in Food Packaging

1. Tamper-Evident Clamshell Containers




   • Material: PET or PETG
   • Use Case: Berries, sandwiches, salad kits

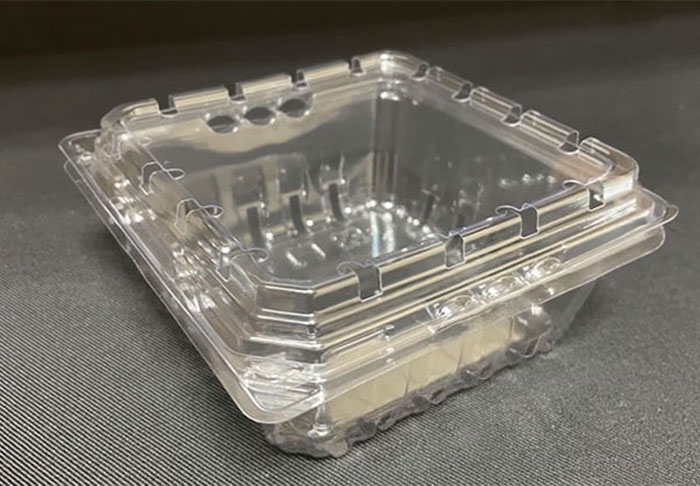

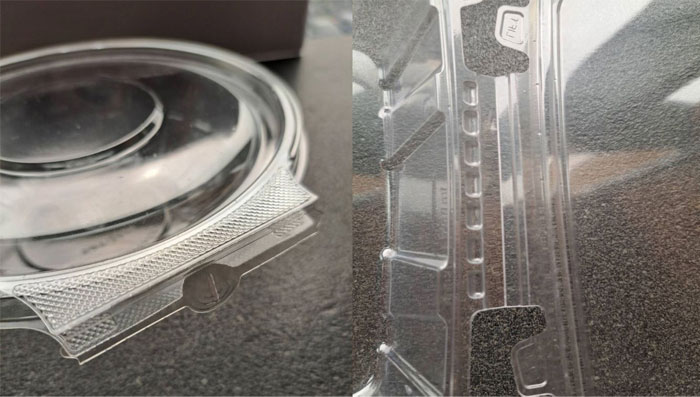

   Mold Design Focus: Clamshell molds must support clear snap-lock features that are both intuitive and tamper-resistant. A poorly designed hinge or closure can compromise product integrity or confuse users.




   HongZu Insight:
   Our engineers customize molds to create various snap-button designs—oval, triangular, or rectangular—that ensure secure closures and ease of use. HongZu also integrates inline detection systems to maintain high sealing accuracy and prevent production defects.




   Compatible Machines:
   WM – FC 780 E / FC 780 IM2 / FC 1000 E
   GABLER – FOCUS 60 / FOCUS 80 / FOCUS 100
   ILLIG – RV 53d / RV 74 / RDK 80
   INPAK – TS-800 / TS-1000
   KIEFEL – KMD 78 / KMD 78 SPEED / KMD 90
   YM – YM 8565




   Read more: Clamshell Packaging Design Guide






2. Leak-Proof Ready Meal Trays




   • Material: PP or CPET
   • Use Case: Frozen meals, microwaveable trays




   Mold Design Challenge: Leak prevention under temperature extremes (freezing, reheating) requires perfectly aligned sealing surfaces and consistent wall thickness.




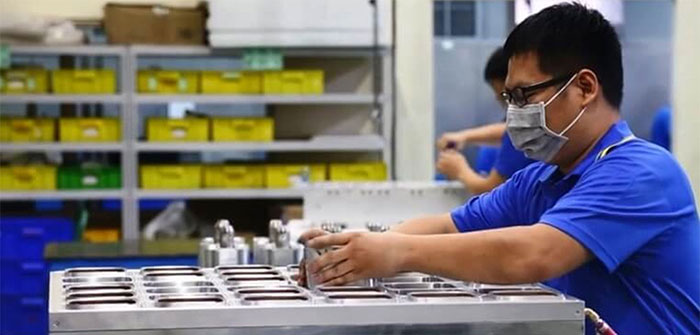

   We employ multi-cavity aluminum molds with plug-assist features to ensure uniform material distribution. Our mold layout reduces warping and minimizes edge trimming. This design has been adopted by top-tier food processors to prevent leaks during transport and storage.




   Compatible Machines:
   CHENG MEI – CM-100 / CME1000 / CME1350
   CHUDONG – SL-1220A
   ASANO – FLC-315PB3-C2-EX / FLC-415PC5 / FLC-415PC4
   SENBA – VA-78 / VA-83 / VA-110
   SUNWELL – MF850H / MF1000 / MF1125H
   VFK – 110/120TSAV / 800/700FTR / M1000/1000APSL




   Read more: Thermoforming Molds for Tamper-Proof, Leak-Proof Packaging






3. Thermoformed Beverage or Yogurt Cups




   • Material: PP, PET, PLA
   • Use Case: Single-serve drinks, dairy products




   Mold Design Priority: Requires high-speed cycle compatibility, consistent cup shape, and smooth forming for high-speed filling lines.




   HongZu Approach:

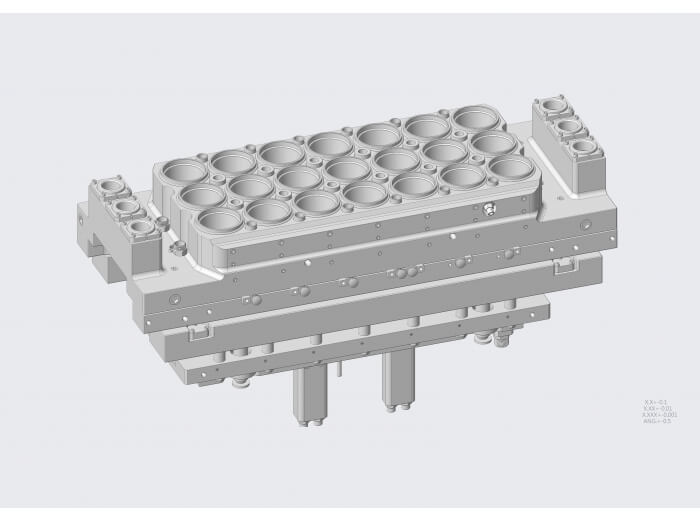

   We design cup molds with in-mold cutting and plug assist systems. The tooling also includes temperature-controlled zones for dimensional stability, especially for thin-walled cups. Our team ensures compatibility with form-fill-seal (FFS) lines.




   Compatible Machines:
   ILLIG – RDM 70K / RDM 75K / RDM 75Kc
   WM – Twist 700 / FT 700 / FT 900
   KIEFEL – KTR 4 / KTR 5 / KTR 6
   GABLER – M92 / M92XL / M98
   AMUT – AMP630 / AMP850S-GP




   Learn more: Plastic Cup Molding: Thermoforming vs Injection Molding














4. Ventilated Produce Trays, Containers & Clamshells




   • Material: PET
   • Use Case: Fruits and vegetables requiring airflow in various formats—including flat trays, lidded containers, and clamshell-style folding boxes.




   Mold Design Focus: Whether producing ventilated trays, sealed containers, or hinged clamshells, the mold must maintain airflow efficiency while ensuring structural strength, stacking integrity, and optical clarity.




   HongZu Design Innovation:
   Our tooling incorporates precision-punched vent holes and finely calibrated vacuum venting systems to enable tailored airflow patterns. These mold features support rapid pre-cooling in the cold chain, helping extend shelf life while meeting strict export-grade packaging requirements across different form factors.




   Compatible Machines:
   LYLE – 152FM / 154FM / 165FM
   BM – CS-3036 / CS-4500 / CS-5500
   TSL – Low Flex 3.0 / Low Flex 5.0
   SENCORP – Sencorp 2500
   T2 – 10075/18-50 / 83100/15-35
   IRWIN – MODEL 30 / MODEL 44 / MODEL 50









5. Stackable Food Containers for Takeout




   • Material: PP or PET
   • Use Case: Multi-compartment lunch boxes, bento trays




   Mold Design Priority: Secure stacking without sticking, ergonomic tab openings, and durability under heat or pressure.




   HongZu Solution:

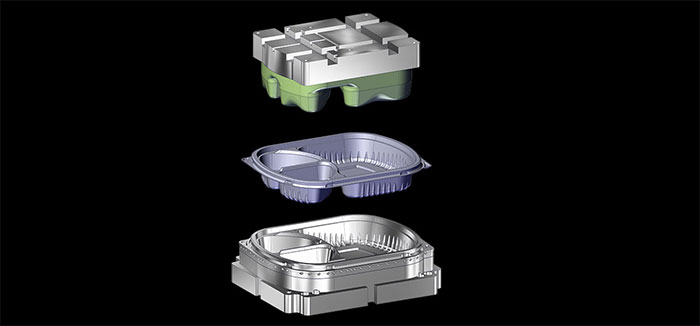

   Through smart draft angle design and custom rib patterns, HongZu ensures trays are easily nested and separated. We support multi-zone cooling to reduce deformation and streamline post-forming automation.




   Compatible Machines (Option 1):
   CHENG MEI – CM-100 / CME1000 / CME1350
   CHUDONG – SL-1220A
   ASANO – FLC-315PB3-C2-EX / FLC-415PC5 / FLC-415PC4
   SENBA – VA-78 / VA-83 / VA-110
   SUNWELL – MF850H / MF1000 / MF1125H
   VFK – 110/120TSAV / 800/700FTR / M1000/1000APSL




   OR Compatible Machines (Option 2):
   WM – FC 780 E / FC 780 IM2 / FC 1000 E
   GABLER – FOCUS 60 / FOCUS 80 / FOCUS 100
   ILLIG – RV 53d / RV 74 / RDK 80
   INPAK – TS-800 / TS-1000
   KIEFEL – KMD 78 / KMD 78 SPEED / KMD 90
   YM – YM 8565






Why Mold Design Matters More Than You Think

Each example above illustrates how custom mold design solves packaging challenges in real-world food applications. But what makes a great thermoforming mold?

Key Innovations:

• Vacuum and Plug Assist Control for consistent wall thickness
• Hidden Venting Ports for flawless transparent surfaces
• Multi-Core and Quick Change Inserts for flexible production
• Moisture-Resistant Tooling for PETG, PLA, and other sensitive materials

Even small oversights—such as neglecting PP’s high shrinkage rate—can lead to warping, seal failures, or excessive trimming. That's why HongZu engineers always begin with detailed material behavior simulations before finalizing mold specifications.

All HongZu molds are produced under a Bureau Veritas–certified ISO 9001:2015 quality management system, specifically for the design, manufacturing, sales, and service of food packaging mold components.

In addition, all mold surfaces feature food-grade PTFE (Teflon™) coatings, ensuring hygienic contact compliance and excellent anti-stick performance for thermoforming applications involving direct food contact.

Thermoforming Mold Design with Food Safety & Efficiency in Mind

HongZu’s mold solutions are designed to meet the strict demands of the food packaging industry, from tamper resistance to hygiene compliance. We understand that material choice, mold layout, cooling dynamics, and air system design all affect:

• Production yield
• Packaging integrity
• Shelf-life performance
• Brand perception

Read more: Guide to Thermoforming Food Packaging: Everything You Need to Know

Frequently Asked Questions (FAQ)

Q1: How does plug-assist improve the thermoforming of deep trays or cups?
A plug-assist helps pre-stretch the plastic sheet during forming, ensuring even material distribution—especially in deep or narrow areas. This minimizes thinning and improves structural integrity.

Q2: What materials work best for tamper-evident packaging?
PET and PETG are widely used due to their clarity and snap-lock performance. These materials work well with polished molds and inline inspection systems.

Q3: Can HongZu molds support multi-cavity and fast changeover setups?
Yes. Our modular core-and-cavity inserts support multi-cavity configurations and fast changeovers, reducing downtime in high-volume production.

Q4: How does mold design affect food shelf life?
Mold precision impacts sealing surfaces and tray uniformity, which in turn influences leak-proof performance and freshness retention. Proper airflow design also supports cold chain compatibility.

Thermoforming Success Starts with the Right Partner — HongZu

When you look closely at successful thermoformed packaging, you’ll find more than just good materials—you’ll find a great mold behind it. At HongZu, we don’t just make molds; we deliver end-to-end thermoforming solutions that transform your packaging ideas into scalable, cost-effective, and high-quality results.

If you’re developing a new food packaging concept or seeking better production performance, our team is ready to help.

Contact HongZu for a free preliminary evaluation and explore how the right thermoforming mold can elevate your product.
